QLK Wheelchair Docking System Features
Extensive Crash Testing
The only docking system meeting higher WC/19 load standards—tested forward, rearward, and sideways for maximum safety.
Slim, Flexible Dash Control
A compact, modern design with a larger touch area and integrated LED indicators for quick system status checks.
Advanced Stabilizer
Exclusive stabilizer attaches directly to the QLK cover, enhancing stability and allowing driver-position installation.
Adjustable Clearance
Optional mounts support installation heights from 1.5″ to 4″ (38–100 mm), enabling secure docking for even low-clearance wheelchairs like the Jazzy Select 6 and Ultra Elite.
SMART Processor
A new microprocessor controller communicates directly between the control pad and base for advanced reliability—using a single micro-switch for simplified, durable performance.
ECO Functions
Ultra-efficient design draws just 76.5 μA in sleep mode—up to five times less power than competitors—and only 4.2–9.1 amps during solenoid release.
Plug-and-Play Service
Quick-connect fittings, removable cover, and screw terminals simplify wiring, reduce service time, and eliminate the need for crimping or soldering.
Remote Compatibility
Easily pairs with any new or existing QLK docking system for added convenience.
Heat-Treated Steel Construction
High-grade, eco-coated steel parts are heat-treated for superior strength, durability, and corrosion resistance.
Smaller Footprint
Shortened cover reduces size by 1.5″ (38 mm) over the QLK-100, eliminating caster interference.
Flush, Tapered Channel
Smooth, snag-free surface with a tapered guide for easier docking and an extra 3/16″ (5 mm) of bolt clearance.
Over-Torque Protection
Prevents system lock-up from accidental over-tightening, ensuring long-term reliability.
Options

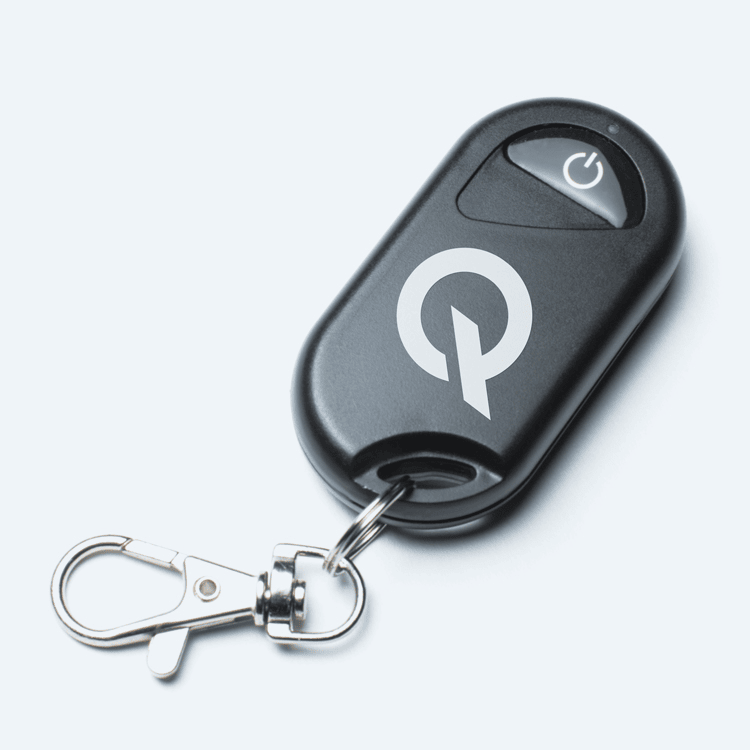

QLK Remote
Easily pairs with any new or existing QLK docking system.
Designed for convenience and accessibility, the key fob remote eliminates the need to reach the dash—ideal for drivers with limited mobility. It can be clipped to a key ring or mobility device, and also allows operators to release a passenger from outside the vehicle.

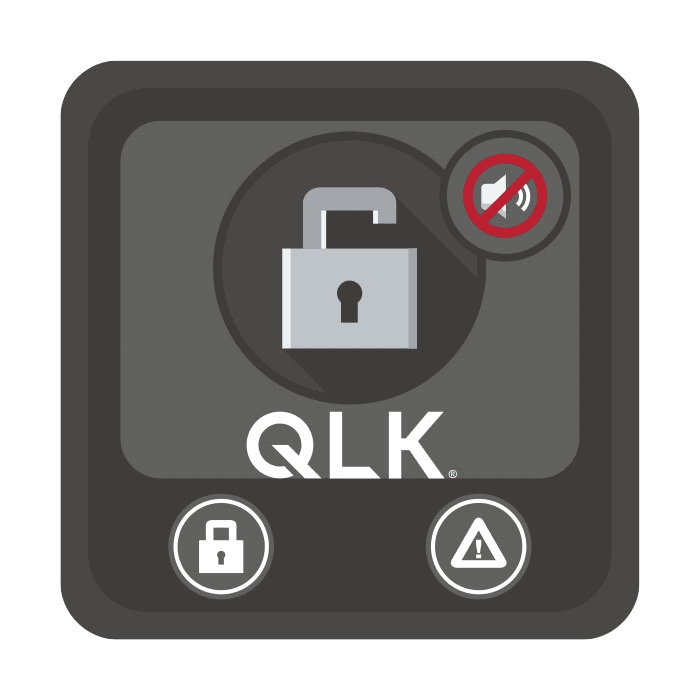

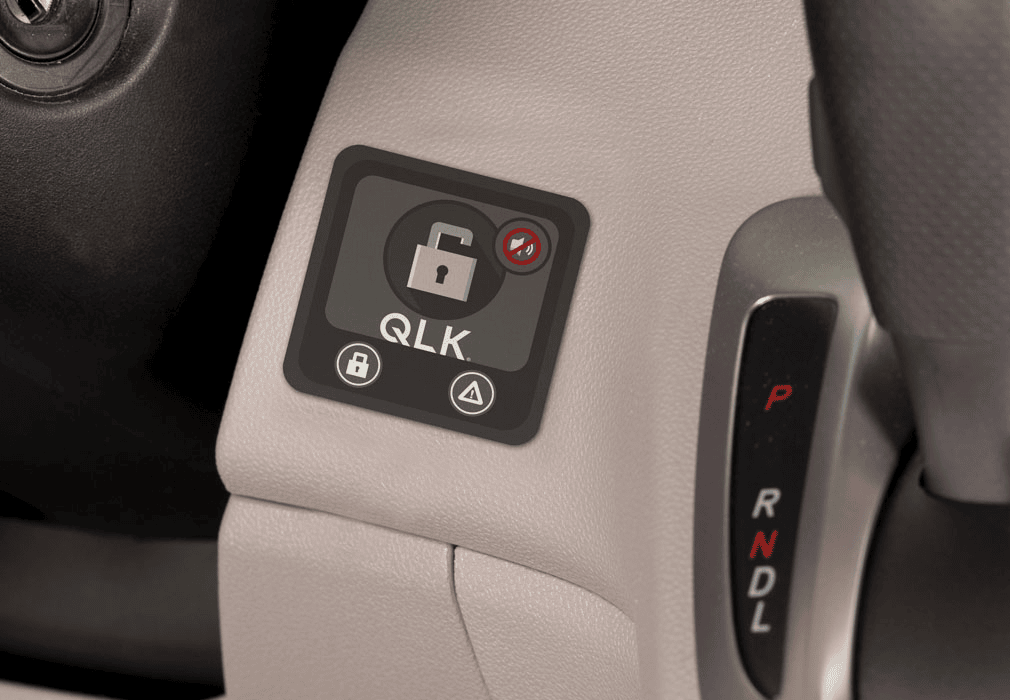

Dash Control
Integrates effortlessly into modern vehicle interiors with no need for modifications.
Its compact form, oversized touch surface, and clear LED indicators deliver an intuitive user experience. Additional dash controls can be installed if required.

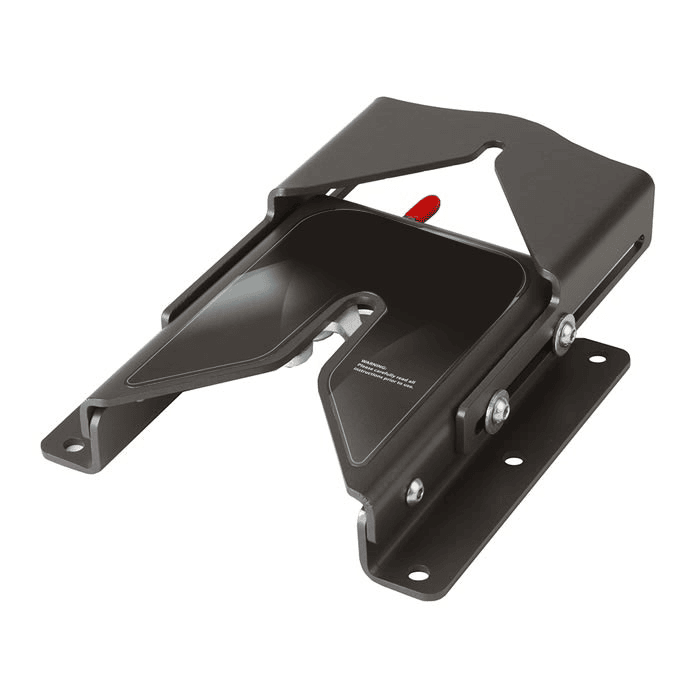

Advanced Stabilizer
Upgrade from the old stabilizing fork.
QLK delivers advanced stabilization solutions that are easy to install and simple to use—giving your customers safety and stability without compromising wheelchair mobility.

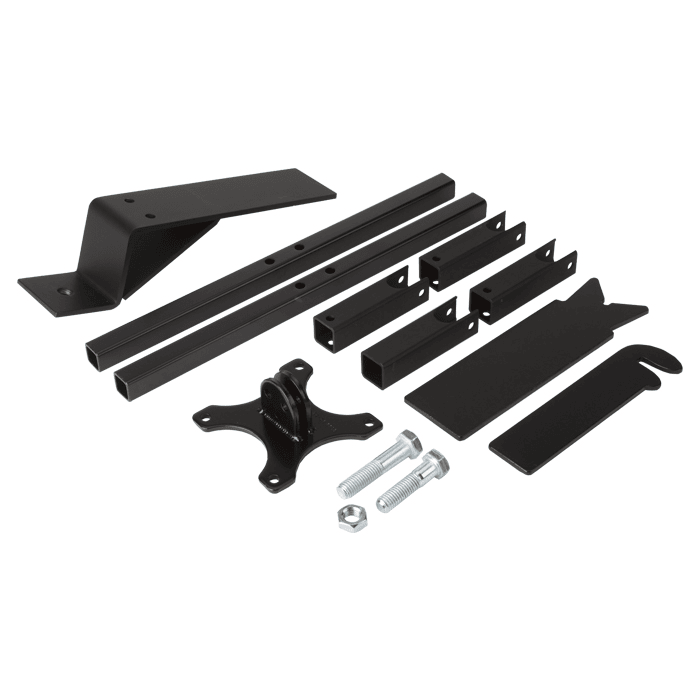

Bracket Leader
Hundreds of manufacturers. Thousands of wheelchair models. One comprehensive solution.
QLK offers the most extensive lineup of exclusive wheelchair brackets in the industry—engineered to fit today’s most popular chairs with unmatched precision. No other docking system even comes close to the depth and compatibility of QLK’s complete range. Whatever your chair, chances are, QLK already has the perfect fit.

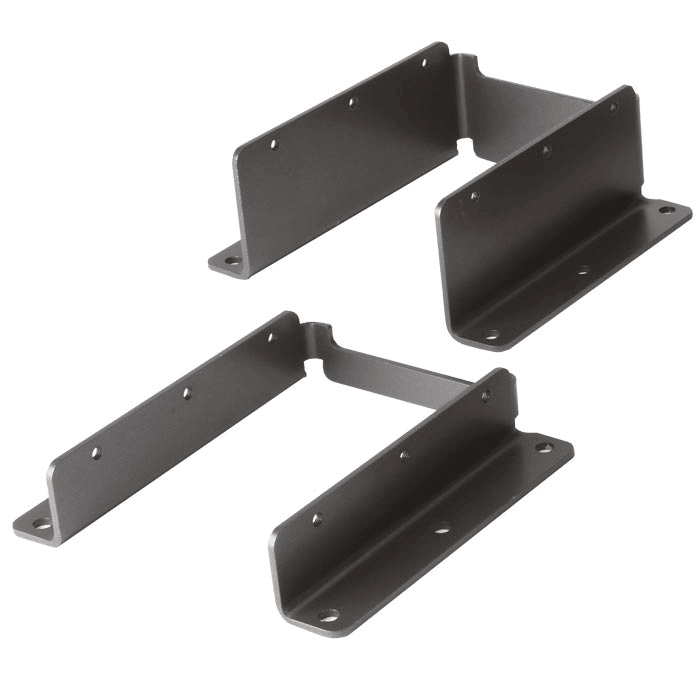

Floor Mounts
The docking system with the lowest and highest clearance options available.
Our precision-engineered base mounts offer a true OEM fit while delivering greater ground clearance than any other system on the market. Even a few millimeters can make a noticeable difference—but with QLK floor mounts, you can gain up to several inches of additional clearance, dramatically improving performance and accessibility.
